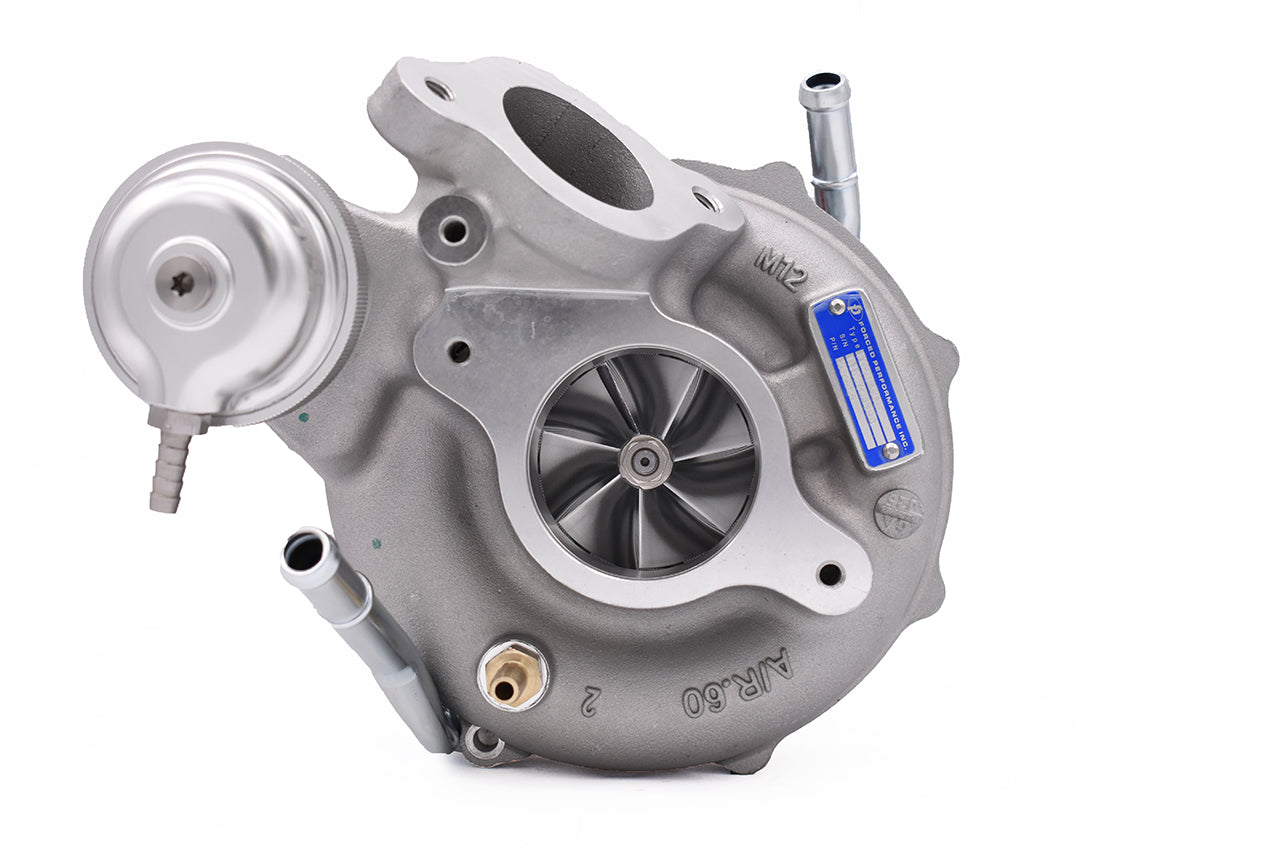

XR Ball Bearing FA20 Blue Turbocharger for Subaru 2015+ WRX
XR Ball Bearing FA20 Blue Turbocharger for Subaru 2015+ WRX
Couldn't load pickup availability
***FA20 turbos currently have a 10-12 week estimate please note this before ordering!!!***
Subaru XR FA20 Blue
- Compressor wheel - 73HTZ
- Flow rating - 57LB per minute
- CW Measurements - 52.6MM Inducer / 73MM Exducer
- TW Measurements - 60.8MM Inducer / 54MM Exducer
- Compressor Housing - Factory Size Stock Appearing Cover
- Turbine Housing - 10CM FA20 Fitment Turbine Housing
- CHRA - Xona Rotor Ball Bearing
- Wastegate Actuator - 18PSI Tial MVI
- Oil Line - Included
The XR FA20 Blue™ turbocharger for the 2015+ Subaru WRX features the 73mm HTZ™ compressor wheel with a stock fitment, stock appearing cover coupled to the 10cm2 turbine section. This bolt on solution produces a great balance of spool and power and gives you the enhanced durability of the Xona Rotor Ball Bearing billet CHRA. The FA20 Blue™ flows 57LB a minute and is capable of producing upwards of 475WHP. This turbo comes with an oil line and gasket set, giving you everything you need to bolt it straight onto your car. The factory oil drain sump will be kept and reused, it is shown in pictures for fitment only and is not included.
The Dyno Graph in the pictures is a 2015 WRX tuned by Clark Turner.
Note: The FA20 Blue is developed specifically for the 2015+ WRX platform, it will not fit any other platform with the FA20 motor. Additionally it will not fit any vehicle with the EJ series of motors.
Porting is available and recommended for this turbocharger in order to fully realize the performance gains. Please take a look at our Porting Services page for examples.
Attention: All Forced Performance turbochargers are built to order to your exact specifications and should not be considered on the shelf ready to ship unless specifically noted on the work order. Build times vary by model of turbo and options of said turbocharger, therefore we cannot guarantee a delivery date or ETA.
EPA WARNING: This is a RACE ONLY product manufactured and sold for installation on vehicles to beused solely for competition purposes, which, once installed, may never be used, or registered orlicensed for use upon a public road or highway. Higher Standards automotive performance LLC is notresponsible for the sale or misuse of products sold by us intended for competition use only. If you installthis part on your vehicle and use that vehicle on a public road or highway, you will be considered inviolation of the Clean Air Act and personally subject to a civil penalty of $4,454. Clean Air Act Title II Section 203 Code 7522(a)(3)(A) for any person to remove or render inoperative any device or element of design installed on or in amotor vehicle or motor vehicle engine in compliance with regulations under this subchapter prior to itssale and delivery to the ultimate purchaser, or for any person knowingly to remove or renderinoperative any such device or element of design after such sale and delivery to the ultimate purchaser;or(B) for any person to manufacture or sell, or offer to sell, or install, any part or component intended foruse with, or as part of, any motor vehicle or motor vehicle engine, where a principal effect of the part orcomponent is to bypass, defeat, or render inoperative any device or element of design installed on or ina motor vehicle or motor vehicle engine in compliance with regulations under this subchapter, andwhere the person knows or should know that such part or component is being offered for sale orinstalled for such use or put to such use; or .
