Walbro

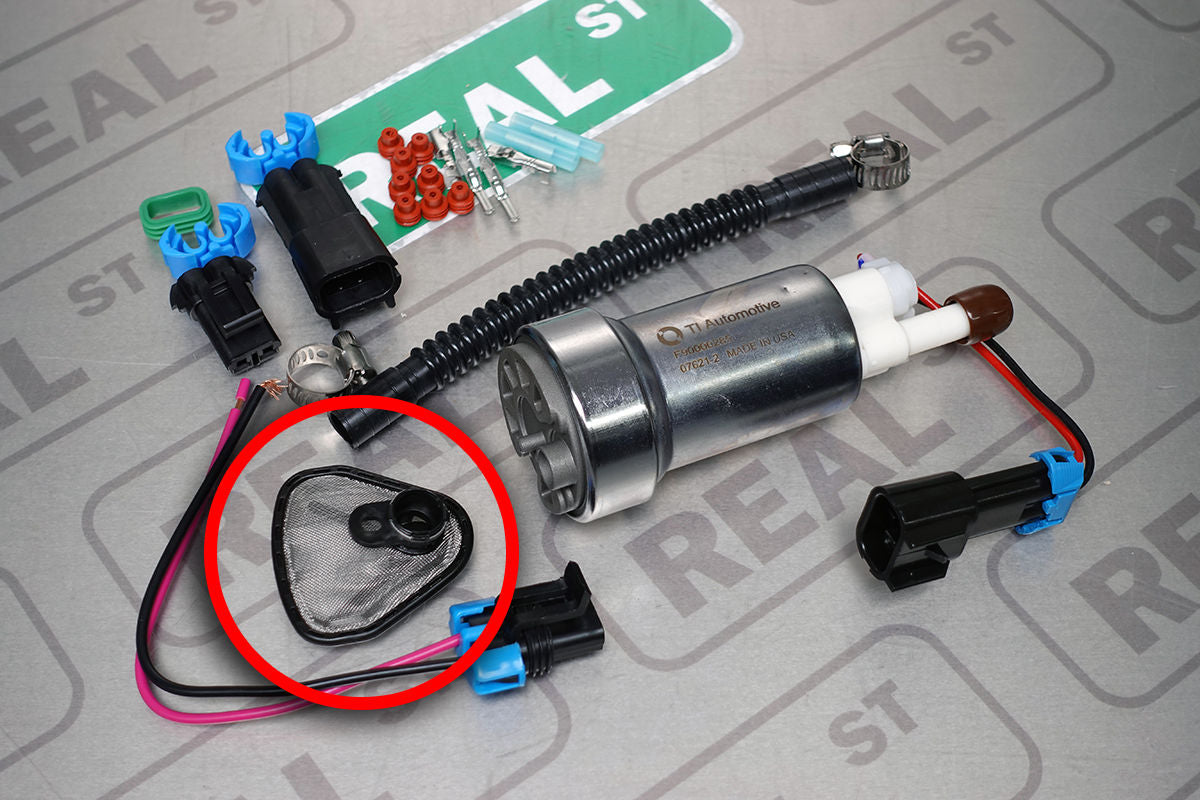

Walbro 525lph In-Tank Fuel Pump Pro Kit with Stainless Pre Filter F90000285 W460-SS 400-1168 SKU# F90000285-SSAIKIT
Walbro 525lph In-Tank Fuel Pump Pro Kit with Stainless Pre Filter F90000285 W460-SS 400-1168 SKU# F90000285-SSAIKIT
Couldn't load pickup availability
The innovative design of the DCSS 39/50 features a single impeller with two parallel rows of turbine blades. Designed for high performance engines exceeding 700HP.
• Highest flow in-tank brushed fuel pump offering from TI Automotive
• Featuring award winning DCSS technology
• E85 compatible
• Internal check valve — prevent fuel system pressure bleed down — avoid extended cranks
• High pressure relief setting — support supercharger and turbo applications
• Capable of supporting 900+HP at 60PSI naturally aspirated applications
• Flush mountable to existing hanger with installation kit 400-1174
Fuel: GAS & E85
Horsepower: 900+ at 60PSI, naturally aspirated applications
Over All Pump Length: 131mm
Main Housing Diameter: 39mm
Lower Housing Diameter: 50mm
Fuel Inlet Diameter: 11mm OD
Fuel Outlet Diameter: 11mm OD
Flow Rate: 470lph @ 40psi (120+ gph)
Test Voltage: 13.5 Volts
The Fueled By AI designed, engineered & manufactured Walbro fuel pump stainless steel fuel filter is a 200-micron fuel filter/strainer are manufactured to motorsport specifications for enhanced durability and are your best line of defense against premature fuel pump failure. The 200-micron element is designed to ensure there is no restriction at the fuel pump inlet and at the same time provide the necessary protection from harmful debris. This filter is supported by an Internal skeleton - unlike the OEM strainer, the Fueled By AI stainless steel motorsport filters are manufactured using an internal injection-molded non-collapsible skeleton which prevents fuel pump failure due to a collapsed filter/strainer - GUARANTEED NOT TO COLLAPSE!
Nearly 75% of all aftermarket fuel pump failures are due to contaminants with the fuel system, so be sure to use one of these genuine replacement fuel pump strainers regularly.
Compatible with unleaded, ethanol and C16.
*Designed specifically for the Walbro 450 / 460 / 520 / 525 / 530 fuel pumps
*It is advised that you service your fuel pump strainer every time you service your vehicle or every six (6) months if ethanol based fuels are used.
EPA WARNING: This is a RACE ONLY product manufactured and sold for installation on vehicles to beused solely for competition purposes, which, once installed, may never be used, or registered orlicensed for use upon a public road or highway. Higher Standards automotive performance LLC is notresponsible for the sale or misuse of products sold by us intended for competition use only. If you installthis part on your vehicle and use that vehicle on a public road or highway, you will be considered inviolation of the Clean Air Act and personally subject to a civil penalty of $4,454. Clean Air Act Title II Section 203 Code 7522(a)(3)(A) for any person to remove or render inoperative any device or element of design installed on or in amotor vehicle or motor vehicle engine in compliance with regulations under this subchapter prior to itssale and delivery to the ultimate purchaser, or for any person knowingly to remove or renderinoperative any such device or element of design after such sale and delivery to the ultimate purchaser;or(B) for any person to manufacture or sell, or offer to sell, or install, any part or component intended foruse with, or as part of, any motor vehicle or motor vehicle engine, where a principal effect of the part orcomponent is to bypass, defeat, or render inoperative any device or element of design installed on or ina motor vehicle or motor vehicle engine in compliance with regulations under this subchapter, andwhere the person knows or should know that such part or component is being offered for sale orinstalled for such use or put to such use; or .
