Toyota Supra SC300 2JZ 1992-1998 MS3Pro PnP Plug and Play

Toyota Supra SC300 2JZ 1992-1998 MS3Pro PnP Plug and Play

$1,499.99 USD
$1,499.99 USD
Sale Sold out



2JZ Supra SC300 9298 MS3Pro PnP Plug and Play Standalone Engine Management System is compatible with the following:

1993-1998 Toyota Supra Turbo (JZA80), manual transmission
1993-1997 Toyota Supra non turbo (JZA80), manual transmission
1992-1997 Lexus SC300, manual transmission

2JZ Supra SC300 9298 MS3Pro PnP Plug and Play is easy to install (1 hour typical)

2JZ Supra SC300 9298 MS3Pro PnP #JZ9298 Features:

  • Fully Plug and Play Installation – No wiring required for basic functionality.
    • Average install time is under 1 hour!
  • Base map for 2JZ-GTE is pre-loaded to help your engine start on the first turn of the key
  • Real time tuning and data logging with a laptop connection
  • 8 GB internal data logging with built in SD card
  • Supports most aftermarket wideband sensors

Fully Tunable Engine Control!

  • 16×16 Fuel Tables allow high resolution tuning
  • 16×16 Ignition Tables
  • Multiple Acceleration enrichment strategies
  • Closed Loop Idle Speed Control
  • Air Conditioner Control
  • 6 sequential fuel injector channels with individual trim tables
  • Onboard peak and hold drivers support both high and low impedance injectors – No external ballast resistor is needed!
  • Allows removal of stock airflow meter
  • Boost control – supports single turbo or sequential twin turbo systems
  • Set boost by RPM and throttle, ground speed, or gear

Advanced Feature Set (Included!)

  • 12×12 Air Fuel Ratio Target Tables for use with wide band O2 sensor for precise tuning and table trim.
  • Multiple traction control strategies
  • Built-in 3-step rev limiter / launch control with flat shift and burnout rev limiter
  • Time based timing / boost increase after launch
  • Real time barometric correction
  • Internal 4-bar MAP sensor reads up to 44PSI of boost
  • Overboost protection
  • Closed loop boost control (Requires boost solenoid kit)
  • Rally style anti lag
  • Water injection control – on/off or variable
  • Knock sensor input with adjustable sensitivity, crank angle windowing, and more
  • Table switching input. Change fuel and spark maps on the fly for different fuels, nitrous activation, etc.
  • Input for flex fuel sensor – switch between E85 and gasoline on the fly!
  • CANBus connector allows interconnection of other MegaSquirt-compatible devices for additional functions (EGT Input, Automatic Transmission Controller, Additional Sensors…..the possibilities are limitless!

What you get in the box:

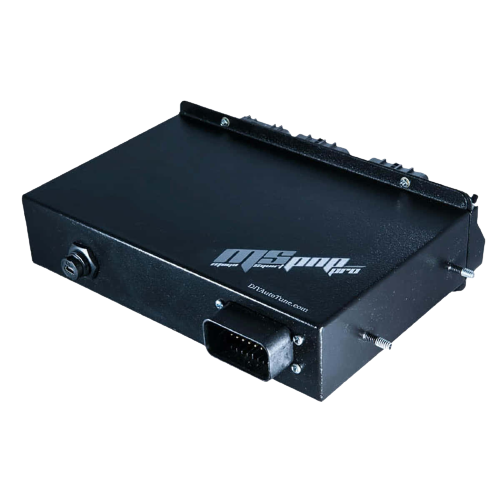

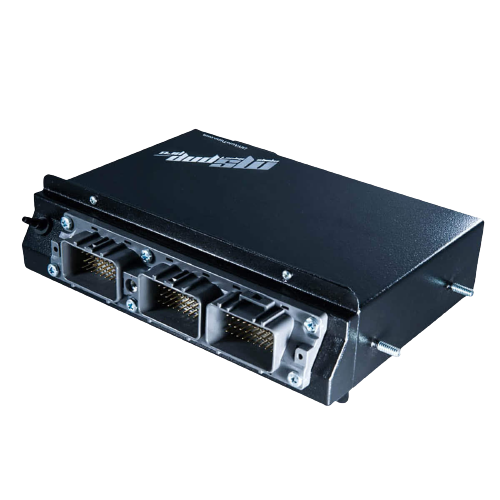

  • 2JZ Supra SC300 9298 MS3Pro PnP ECU
  • RS232 tuning cable (Note – this is a running change. Earlier versions used USB.)
  • Tuning Software and Documentation on USB memory stick
  • 6′ Vacuum Hose for MAP Signal and ‘T’ fitting
  • Four Screws for ECU mounting
  • Registered version of TunerStudio and MegaLog viewer included

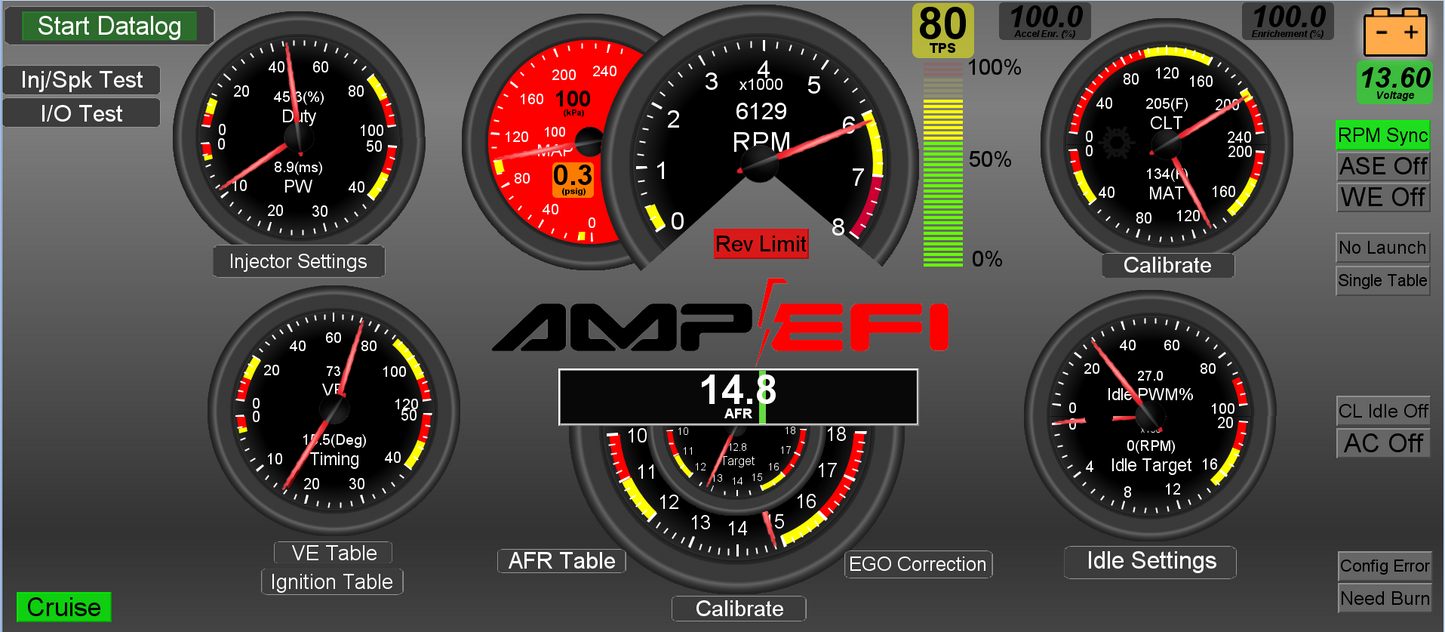

  • Make sure to use our Custom TunerStudio Dashboard, designed specifically to help make tuning your new build intuitive and easy!

EPA WARNING: This is a RACE ONLY product manufactured and sold for installation on vehicles to beused solely for competition purposes, which, once installed, may never be used, or registered orlicensed for use upon a public road or highway. Higher Standards automotive performance LLC is notresponsible for the sale or misuse of products sold by us intended for competition use only. If you installthis part on your vehicle and use that vehicle on a public road or highway, you will be considered inviolation of the Clean Air Act and personally subject to a civil penalty of $4,454. Clean Air Act Title II Section 203 Code 7522(a)(3)(A) for any person to remove or render inoperative any device or element of design installed on or in amotor vehicle or motor vehicle engine in compliance with regulations under this subchapter prior to itssale and delivery to the ultimate purchaser, or for any person knowingly to remove or renderinoperative any such device or element of design after such sale and delivery to the ultimate purchaser;or(B) for any person to manufacture or sell, or offer to sell, or install, any part or component intended foruse with, or as part of, any motor vehicle or motor vehicle engine, where a principal effect of the part orcomponent is to bypass, defeat, or render inoperative any device or element of design installed on or ina motor vehicle or motor vehicle engine in compliance with regulations under this subchapter, andwhere the person knows or should know that such part or component is being offered for sale orinstalled for such use or put to such use; or .
