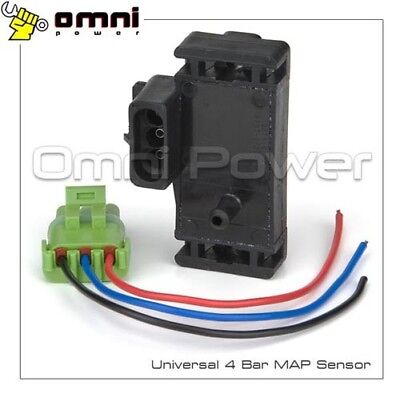

Omni Power GM Universal 4 Bar MAP Sensor
Omni Power GM Universal 4 Bar MAP Sensor
Couldn't load pickup availability
Omni Power USA 4 Bar MAP (Manifold Absolute Pressure) sensors use state of the art bipolar op amp circuitry with thin film resistor networks built into each micro chip.
Pressure changes are calculated on a true linear 0-5 volt scale via a specially designed silicon pressure sensor that also compensates for temperature changes.
The unique ability to compensate for temperature changes allows the Omni Power USA MAP sensor to remain a minimum of 99% accurate from 32 degrees F to 180 degrees F through out its range of scale. With the true linear pressure vs. voltage scale there is never a need to re-tune at different altitudes as with other sensors.
Competitors sensors on the market don't have true linear scaling which can cause your engine to go out of tune with elevation changes, often resulting in idle problems, poor driveability, and catastrophic engine damage.
Omni Power 4 bar MAP sensors can precisely calculate boost pressure from 1-43+ psi while still allowing smooth stock OEM drivability at any boost level. Conveniently packaged in a universal Style housing including plug and pigtails for an easy install.
Key features:
- Cases are designed to withstand in excess of 130 PSI without leaking
- -40 to 260 degrees Fahrenheit temperature operating range
- Able to respond from 10% of the pressure scale to 90% of the pressure scale in .001 seconds (the fastest response time of any MAP sensor on the market).
- Automatic temperature compensation.
- True linear scaling for perfect drivability at all boost and vacuum levels.
- Compatible with all aftermarket engine management systems.
- Minimum of 99% accurate over full scale range under all conditions including temperature, altitude, and humidity changes.
- Allows smoother engine operation, higher boost levels, and better drivability than competitors turbo MAP sensors.
- Each sensor is hand assembled, pressure, and function checked in the USA for unparalleled quality control prior to shipping.
EPA WARNING: This is a RACE ONLY product manufactured and sold for installation on vehicles to beused solely for competition purposes, which, once installed, may never be used, or registered orlicensed for use upon a public road or highway. Higher Standards automotive performance LLC is notresponsible for the sale or misuse of products sold by us intended for competition use only. If you installthis part on your vehicle and use that vehicle on a public road or highway, you will be considered inviolation of the Clean Air Act and personally subject to a civil penalty of $4,454. Clean Air Act Title II Section 203 Code 7522(a)(3)(A) for any person to remove or render inoperative any device or element of design installed on or in amotor vehicle or motor vehicle engine in compliance with regulations under this subchapter prior to itssale and delivery to the ultimate purchaser, or for any person knowingly to remove or renderinoperative any such device or element of design after such sale and delivery to the ultimate purchaser;or(B) for any person to manufacture or sell, or offer to sell, or install, any part or component intended foruse with, or as part of, any motor vehicle or motor vehicle engine, where a principal effect of the part orcomponent is to bypass, defeat, or render inoperative any device or element of design installed on or ina motor vehicle or motor vehicle engine in compliance with regulations under this subchapter, andwhere the person knows or should know that such part or component is being offered for sale orinstalled for such use or put to such use; or .
