Forced Performance

JB Evo 9 57s UHF™ Green

JB Evo 9 57s UHF™ Green

$1,799.00 USD
$1,799.00 USD $1,799.00 USD
Sale Sold out
Turbine Housing

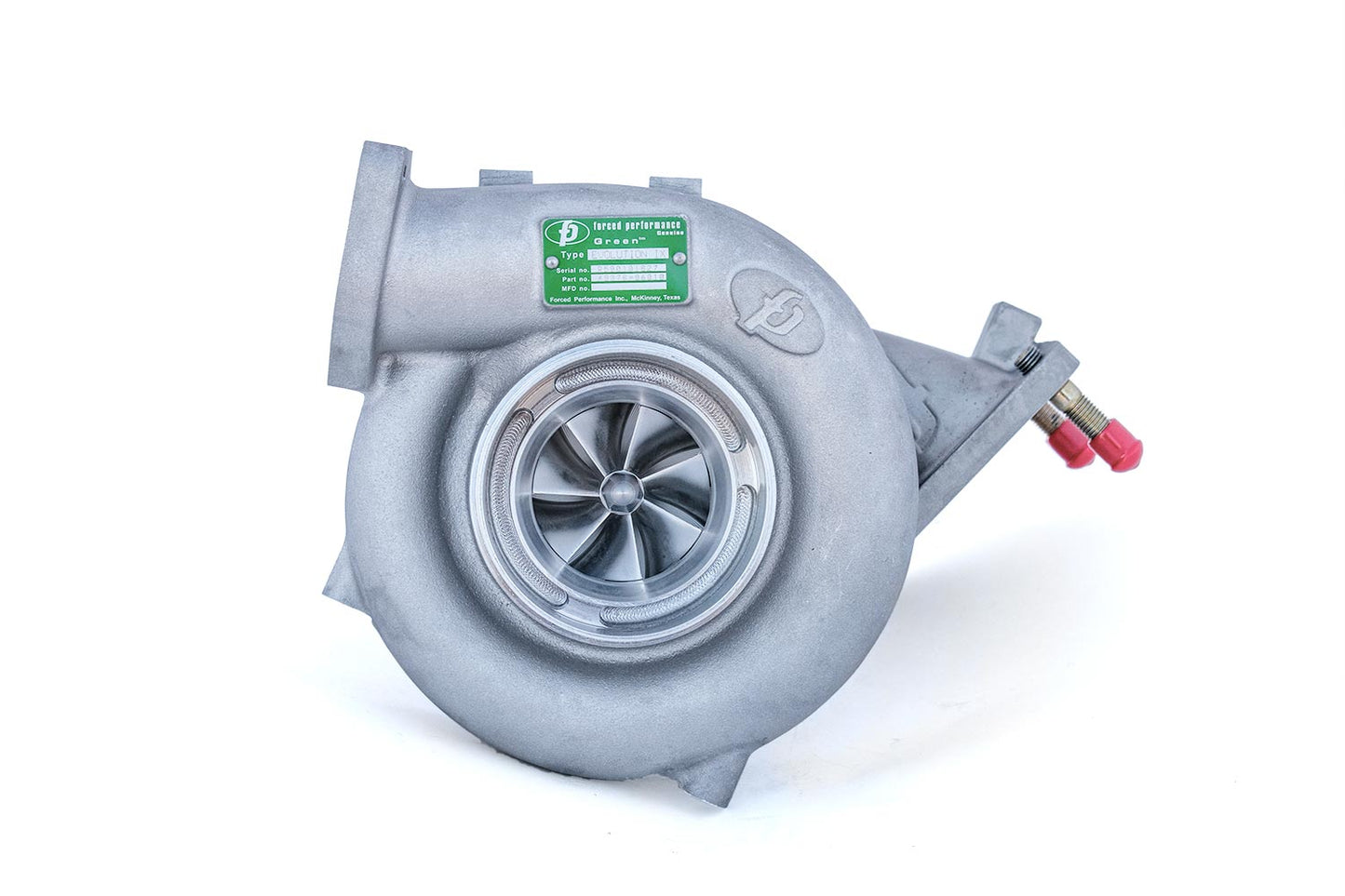

The Journal Bearing Evo 9 57s UHF™ Green is an all new product for 2022 that we are releasing early so that you can get a great deal on a fast spooling, high performing bolt on turbo for your Evo! This turbo is not designed for low boost applications, it excels at high rpm and high boost.

EVO 9 UHF Green

  • Compressor wheel - 73HTZ
  • Flow rating - 57LB per minute
  • CW Measurements - 52.6MM Inducer / 73MM Exducer
  • TW Measurements - 64MM Inducer / 57MM Exducer
  • Compressor Housing - 84MM Flow Advancement Port Cover
  • Turbine Housing - FP Stainless Steel, MHI 9.0 or 10.5
  • CHRA - Heavy Duty FP Journal Bearing
  • Oil Line - FP Evo Journal Bearing Oil Line

For this ground breaking new product we take a standard FP Green and replace the turbine wheel with our new XR57 UHF™ turbine wheel. This provides drastically reduced rotating mass and increased choke flow for even quicker response and less back pressure. In short, more power, earlier.

Here is a note from Robert about the performance of this UHF Green on the race car shown in the video above-

"There are 2 dyno graphs of Kerns car.

One is the current FP Green UHF, the other is the same FP Green UHF laid on top of last years combination with a FPRed model.

Your first thought might be "holdup, that new Green spools up the same as that Red and doesn't make the same peak power"

Well, last season the engine was a built long rod 2.4 with 10.5:1 CR and that dyno graph is 22psi.  This season the engine is a stock 2.0 bottom end and the turbo comes on so fast that we are actually having to open the gate early to keep the torque below the failure level on the stock connecting rods!  So we have almost the same power and response this year with a stock engine and FPGreenUHF turbo as we did last year with a built long rod 2.4 with 10.5CR and a bigger turbocharger."

Attention: All Forced Performance turbochargers are built to order to your exact specifications and should not be considered on the shelf ready to ship unless specifically noted on the work order. Build times vary by model of turbo and options of said turbocharger, therefore we cannot guarantee a delivery date or ETA.

THIS PRODUCT IS FOR COMPETITION USE ONLY. ALL OTHER USES ARE CONTRARY TO FEDERAL LAW. IF YOU INTEND TO USE THIS PRODUCT FOR HIGHWAY OR NON-COMPETITION OFF-ROAD PURPOSES DO NOT PURCHASE OR INSTALL THIS PRODUCT. THIS PRODUCT IS NOT FOR SALE OR USE IN CALIFORNIA ON ANY TYPE OF EMISSION CONTROLLED VEHICLE.

EPA WARNING: This is a RACE ONLY product manufactured and sold for installation on vehicles to beused solely for competition purposes, which, once installed, may never be used, or registered orlicensed for use upon a public road or highway. Higher Standards automotive performance LLC is notresponsible for the sale or misuse of products sold by us intended for competition use only. If you installthis part on your vehicle and use that vehicle on a public road or highway, you will be considered inviolation of the Clean Air Act and personally subject to a civil penalty of $4,454. Clean Air Act Title II Section 203 Code 7522(a)(3)(A) for any person to remove or render inoperative any device or element of design installed on or in amotor vehicle or motor vehicle engine in compliance with regulations under this subchapter prior to itssale and delivery to the ultimate purchaser, or for any person knowingly to remove or renderinoperative any such device or element of design after such sale and delivery to the ultimate purchaser;or(B) for any person to manufacture or sell, or offer to sell, or install, any part or component intended foruse with, or as part of, any motor vehicle or motor vehicle engine, where a principal effect of the part orcomponent is to bypass, defeat, or render inoperative any device or element of design installed on or ina motor vehicle or motor vehicle engine in compliance with regulations under this subchapter, andwhere the person knows or should know that such part or component is being offered for sale orinstalled for such use or put to such use; or .
