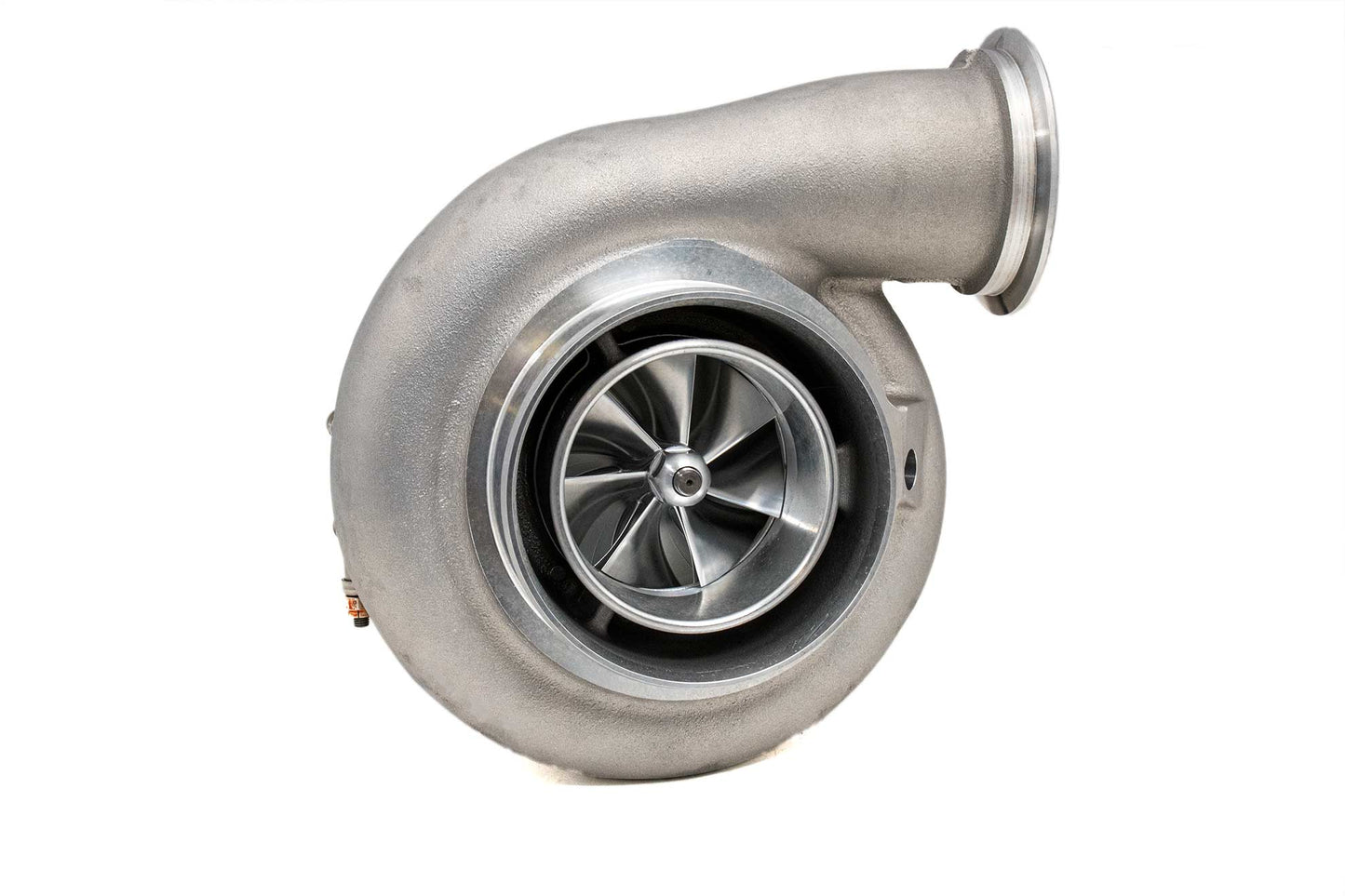

FP400 84HTZ UHF 88S Race Turbocharger
FP400 84HTZ UHF 88S Race Turbocharger
Couldn't load pickup availability
FP400 84HTZ UHF 88S Turbocharger
- Compressor wheel - 84HTZ
- Flow rating - 135+LB per minute
- CW Measurements - 84MM Inducer / 116MM Exducer
- TW Measurements - 96MM Inducer / 88MM Exducer 6+6 UHF 88S
- Compressor Housing - 42R Style Cover
- Turbine Housing - S400 96MM Compatible
- CHRA - BW Oil Cooled Journal Bearing
For serious performance, you need serious components. That's why we're offering the FP400 line of large frame turbochargers. We've taken the heavy hitting, super reliable Borg Warner S400 series and severely improved it.
We start with a genuine BW S400 CHRA and tear it down to basic components. Then the thrust bearing is replaced with a 360 degree oversized pad for maximum thrust capacity. The journal bearings are also replaced with higher flowing oil ported versions to aid in keeping the bearings cool under heavy loads. All the rotating parts are zero balanced and then assembled with the newest HTZ compressor aero wheels that are made 100% in the USA,and the assembly is balanced a final time to verify the perfect nature of the CHRA in its assembled state. To ensure long life for this turbo, use a -6 oil supply line.
The XR484 model in our lineup flows 135+ lbs/min with its 84MM compressor wheel. That puts this turbo in the 1200-1400 HP range for both high PR, small engine applications or lower PR V8 applications.
To complement the increase in compressor flow, we brought in Xona Rotor derived tech in the form of the Ultra High Flow 88S turbine wheel. While having the same physical size as the tried and true BW 96/88mm turbine wheel, the 88S allows massive gains in choke flow capacity without hurting spool.
EPA WARNING: This is a RACE ONLY product manufactured and sold for installation on vehicles to beused solely for competition purposes, which, once installed, may never be used, or registered orlicensed for use upon a public road or highway. Higher Standards automotive performance LLC is notresponsible for the sale or misuse of products sold by us intended for competition use only. If you installthis part on your vehicle and use that vehicle on a public road or highway, you will be considered inviolation of the Clean Air Act and personally subject to a civil penalty of $4,454. Clean Air Act Title II Section 203 Code 7522(a)(3)(A) for any person to remove or render inoperative any device or element of design installed on or in amotor vehicle or motor vehicle engine in compliance with regulations under this subchapter prior to itssale and delivery to the ultimate purchaser, or for any person knowingly to remove or renderinoperative any such device or element of design after such sale and delivery to the ultimate purchaser;or(B) for any person to manufacture or sell, or offer to sell, or install, any part or component intended foruse with, or as part of, any motor vehicle or motor vehicle engine, where a principal effect of the part orcomponent is to bypass, defeat, or render inoperative any device or element of design installed on or ina motor vehicle or motor vehicle engine in compliance with regulations under this subchapter, andwhere the person knows or should know that such part or component is being offered for sale orinstalled for such use or put to such use; or .
