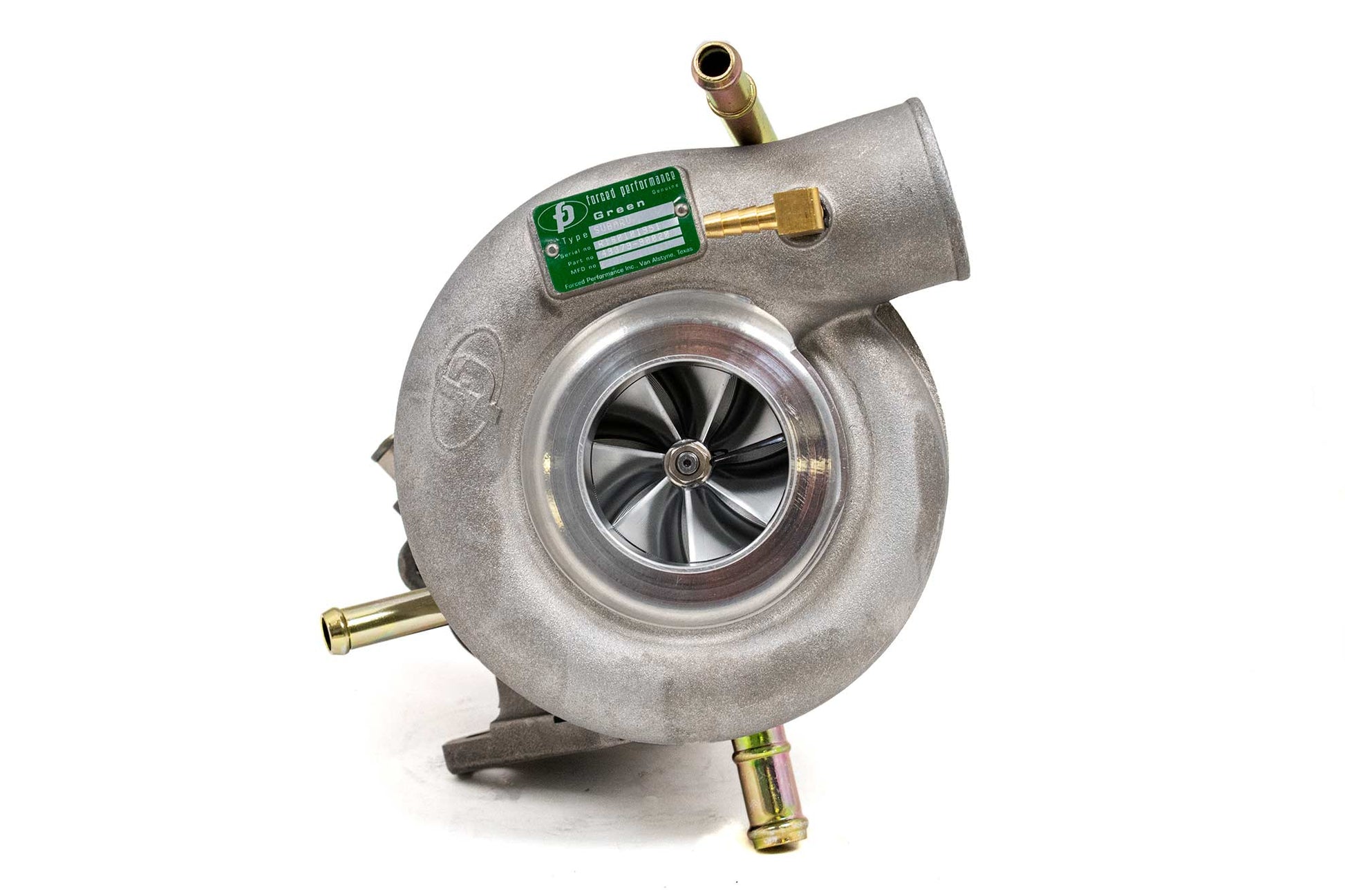

FP Green UHF™
- Compressor wheel - 76HT
- Flow rating - 61LB per minute
- CW Measurements - 54.8MM Inducer / 76MM Exducer
- UHF TW Measurements - 64MM Inducer / 57MM Exducer
- Compressor Housing - 60MM Stock Style Inlet or 84MM FAP Cover
- Turbine Housing - FP 8CM Turbine Housing
- CHRA - FP Journal Bearing
- Oil Line - Included
This turbo features the 76 HT™ compressor section with either a 60MM stock style inlet or 84MM FAP compressor cover coupled to the 8cm turbine housing with our new XR57S UHF turbine wheel. The FP Green™ flows 61LB a minute and is capable of producing upwards of 500WHP. Internal gate turbos are available with either the canister style 15 PSI actuator, or you can upgrade to an 18 PSI TiAL MVI actuator.
Oil Feed Line Installation Instructions
Attention: All Forced Performance turbochargers are built to order to your exact specifications and should not be considered on the shelf ready to ship unless specifically noted on the work order. Build times vary by model of turbo and options of said turbocharger, therefore we cannot guarantee a delivery date or ETA.
THIS PRODUCT IS FOR COMPETITION USE ONLY. ALL OTHER USES ARE CONTRARY TO FEDERAL LAW. IF YOU INTEND TO USE THIS PRODUCT FOR HIGHWAY OR NON-COMPETITION OFF-ROAD PURPOSES DO NOT PURCHASE OR INSTALL THIS PRODUCT. THIS PRODUCT IS NOT FOR SALE OR USE IN CALIFORNIA ON ANY TYPE OF EMISSION CONTROLLED VEHICLE.
EPA WARNING: This is a RACE ONLY product manufactured and sold for installation on vehicles to beused solely for competition purposes, which, once installed, may never be used, or registered orlicensed for use upon a public road or highway. Higher Standards automotive performance LLC is notresponsible for the sale or misuse of products sold by us intended for competition use only. If you installthis part on your vehicle and use that vehicle on a public road or highway, you will be considered inviolation of the Clean Air Act and personally subject to a civil penalty of $4,454. Clean Air Act Title II Section 203 Code 7522(a)(3)(A) for any person to remove or render inoperative any device or element of design installed on or in amotor vehicle or motor vehicle engine in compliance with regulations under this subchapter prior to itssale and delivery to the ultimate purchaser, or for any person knowingly to remove or renderinoperative any such device or element of design after such sale and delivery to the ultimate purchaser;or(B) for any person to manufacture or sell, or offer to sell, or install, any part or component intended foruse with, or as part of, any motor vehicle or motor vehicle engine, where a principal effect of the part orcomponent is to bypass, defeat, or render inoperative any device or element of design installed on or ina motor vehicle or motor vehicle engine in compliance with regulations under this subchapter, andwhere the person knows or should know that such part or component is being offered for sale orinstalled for such use or put to such use; or .
