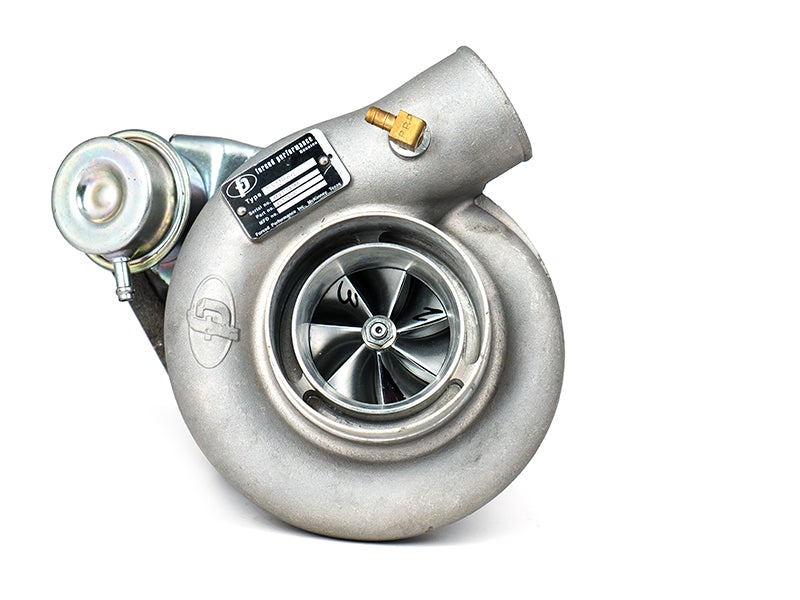

FP RED UHF™ 57S for DSM

FP RED UHF™ 57S for DSM

$1,529.00 USD
$1,529.00 USD $1,529.00 USD
Sale Sold out
Wastegate Option

DSM JB Red UHF™ 57S



  • Compressor wheel - 76HTZ
  • Flow rating - 61LB per minute
  • CW Measurements - 54.8MM Inducer / 76MM Exducer
  • TW Measurements - 64MM Inducer / 57MM Exducer
  • Compressor Housing - 84MM Flow Advancement Port Cover
  • Turbine Housing - FP 8CM
  • CHRA - FP Journal Bearing
  • Oil Line - Not Included

The FP Red features our 76MM HTZ wheel rated at 61LB a minute which can produce upwards of 550WHP. Spinning the compressor wheel is our revolutionary UHF™ 57S stuffed into an 8CM turbine housing. This turbo is available internally gated but if you have an O2 housing setup for external you can bolt it right up to this turbo no custom O2 housing required.

This turbo requires that oil be fed off the filter housing which can be accomplished by purchasing our 1G Oil Supply Line. For all of our journal bearing turbos we recommend a high quality oil, see below for our oiling information sheet.

Forced Performance Recommendations for Motor Oil
Attention: All Forced Performance Turbochargers are built to order to your exact specifications and should not be considered on the shelf ready to ship unless specifically noted on the work order. Build times vary by model of turbo and options of said turbocharger, therefore we cannot guarantee a delivery date or ETA.






EPA WARNING: This is a RACE ONLY product manufactured and sold for installation on vehicles to beused solely for competition purposes, which, once installed, may never be used, or registered orlicensed for use upon a public road or highway. Higher Standards automotive performance LLC is notresponsible for the sale or misuse of products sold by us intended for competition use only. If you installthis part on your vehicle and use that vehicle on a public road or highway, you will be considered inviolation of the Clean Air Act and personally subject to a civil penalty of $4,454. Clean Air Act Title II Section 203 Code 7522(a)(3)(A) for any person to remove or render inoperative any device or element of design installed on or in amotor vehicle or motor vehicle engine in compliance with regulations under this subchapter prior to itssale and delivery to the ultimate purchaser, or for any person knowingly to remove or renderinoperative any such device or element of design after such sale and delivery to the ultimate purchaser;or(B) for any person to manufacture or sell, or offer to sell, or install, any part or component intended foruse with, or as part of, any motor vehicle or motor vehicle engine, where a principal effect of the part orcomponent is to bypass, defeat, or render inoperative any device or element of design installed on or ina motor vehicle or motor vehicle engine in compliance with regulations under this subchapter, andwhere the person knows or should know that such part or component is being offered for sale orinstalled for such use or put to such use; or .
