Forced Performance

FP GREEN UHF™ 57S for DSM

FP GREEN UHF™ 57S for DSM

$1,499.00 USD
$1,499.00 USD $1,499.00 USD
Sale Sold out
Wastegate Option

DSM Green UHF 57S

  • Compressor wheel - 73HTZ
  • Flow rating - 57LB per minute
  • CW Measurements - 52.6MM Inducer / 73MM Exducer
  • TW Measurements - 64MM Inducer / 57MM Exducer UHF™
  • Compressor Housing - 84MM Flow Advancement Port Cover
  • Turbine Housing - FP 8CM
  • CHRA - FP Journal Bearing
  • Oil Line - Not Included

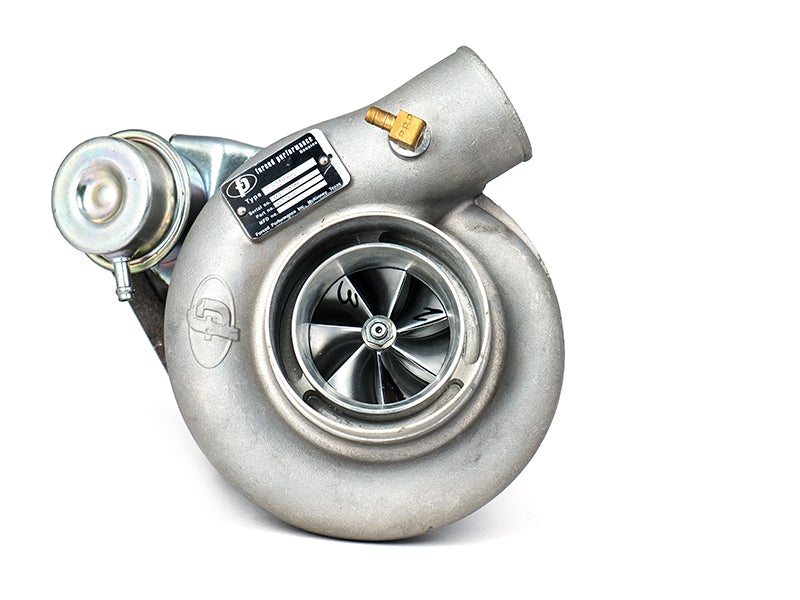

The FP GREEN™ for DSM features our 73HTA™ billet compressor wheel along with an 84mm Flow Advancement Port compressor cover. The 73HTA™ has a flow rating of 57lb/min and is capable of producing upwards of 540hp. This journal bearing turbo is mated to an 8cm turbine housing that can be configured to run with an internal wastegate or external wastegate. The new UHF™ 57S turbine wheel brings incredible response and top end power to the plate. This turbocharger uses a journal bearing version of our popular Xona Rotor 5757S rotating group.

This turbo requires that oil be fed off the filter housing which can be accomplished by purchasing our 1G Oil Supply Line. For all of our journal bearing turbos we recommend a high quality oil, see below for our oiling information sheet.

Forced Performance Recommendations for Motor Oil
Attention: All Forced Performance turbochargers are built to order to your exact specifications and should not be considered on the shelf ready to ship unless specifically noted on the work order. Build times vary by model of turbo and options of said turbocharger, therefore we cannot guarantee a delivery date or ETA.
